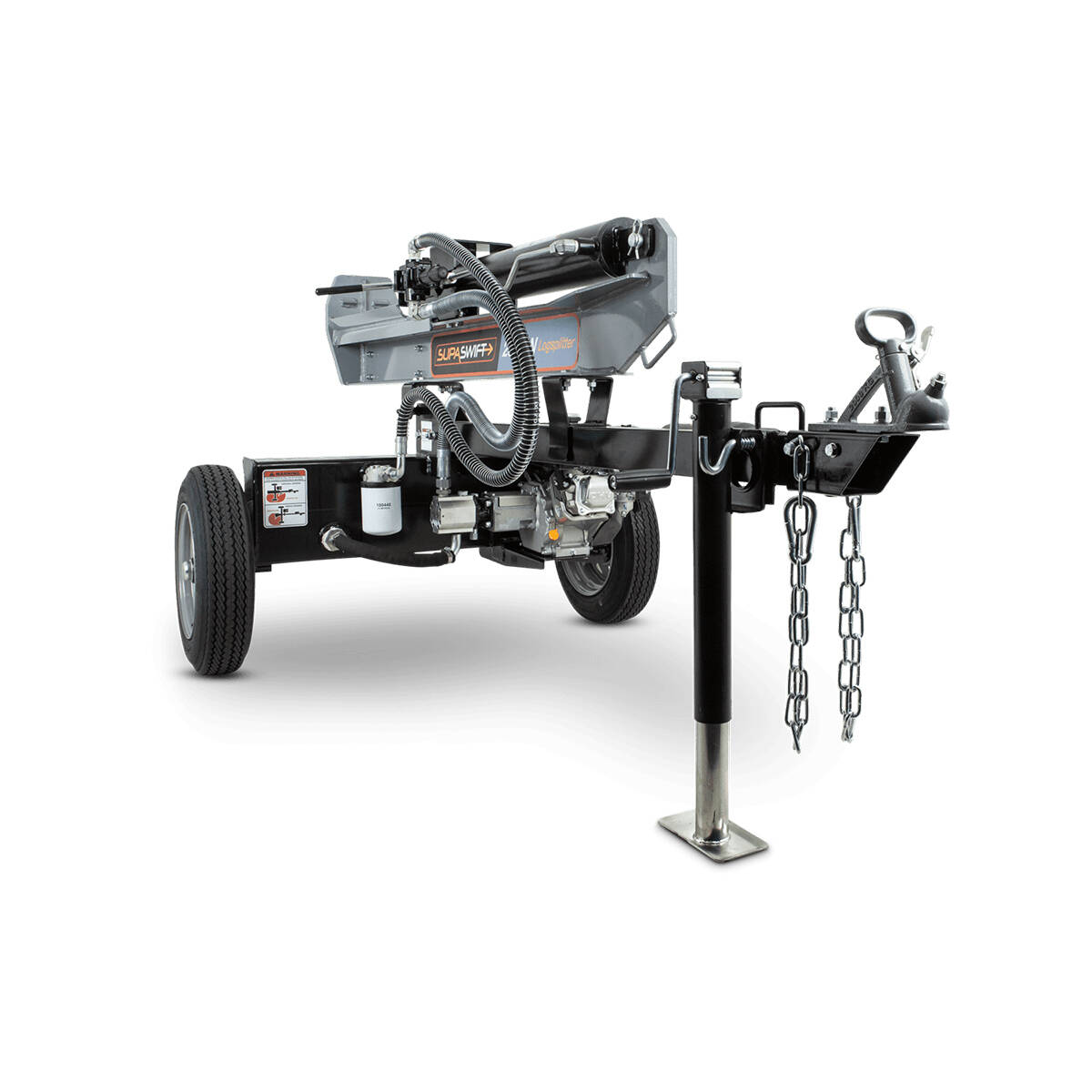

The SupaSwift 25-Ton log splitter provides quality and power at an affordable price. Fitted with a SupaSwift 6.5 hp (196 cc) engine, an auto return valve with an 10.9 second cycle time and quality features throughout this log splitter will provide many years of reliable service.
*All specifications are subject to change without notice.
Features
| Quality Engine – SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine. |
|---|
| Horizontal or vertical operation. |
|---|
| 25 Tons of splitting force. |
|---|
| Auto return valve. |
|---|
| Two stage pump 14.1 GPM (53.37 litres per minute). |
|---|
| Valve – Ergonomically positioned for operator comfort. |
|---|
| Wedge: 8.5 ” (215.9 mm) High angled heat treated steel. |
|---|
| Wheels / Tyres*: 4.80″ x 12″ D.O.T certified. |
|---|
| Beam: 8.5″ (215.9 mm) Foot plate. |
|---|
Specifications
| Engine | SupaSwift 6.5 hp (196 cc) single cylinder, horizontal shaft OHV engine |
|---|
| Hydraulic Ram Cylinder (mm) | Outside: 114.3 mm x 609.6 mm stroke / Inside: 101.6 mm x 622.3 mm stroke |
|---|
| Hydraulic Tank Capacity (L) | 25.5 litres |
|---|
| Maximum Log Length (mm) | 25″ / 635 mm |
|---|
| Pump (L) | Two stage 14.1 GPM (53.37 litres per minute) |
|---|
| Tow Hitch (mm) | *2″ (50 mm) ball hitch with safety chains – Aust style trailer bail hitch |
|---|
| Wedge (mm) | 8.5 ” (215.9 mm) High angled heat treated steel |
|---|
| Operating Position | Horizontal or vertical operation |
|---|
| Capacity | 25 Tons of splitting force |
|---|
| Valve | Auto return valve with adjustable detent |
|---|
| Cycle Time | 10.9 seconds (down and back) |
|---|
| Wheels / Tyres | *D.O.T approved 12″ x 4.80″ multi lug trailer wheel |
|---|
| Beam (mm) | 8.5″ Foot plate / 215.9 mm Foot plate |
|---|
| Ram Size | 1.75″ (44.45 mm) Dia |
|---|
