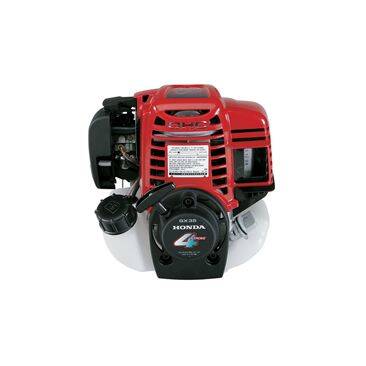

Honda applied our superior engine technology to create the world's first 360° inclinable 4-stroke engines. The ultra-lightweight GX35 mini 4-stroke efficiently delivers the kind of efficient cleaner, powerful, quiet performance that you'd expect from a larger engine- but in a very compact package.
Features
| ADVANCED TECHNOLOGY | Full 360° “any-side-up” operation – use and store in any position |
|---|
| Exclusive rotary-slinger lubrication system |
|---|
| FUEL EFFICIENT, HIGH OUTPUT OPERATION | Approximately half the operating cost of comparable 2-stroke engines |
|---|
| Efficient port configuration and large diameter valves maximize power output |
|---|
| Lighter, more rigid valve train |
|---|
| Carburetor equipped with accelerator pump for fast, easy acceleration |
|---|
| SMOOTH PERFORMANCE | Precision engineered components result in lower vibration |
|---|
| Lighter piston minimizes vibration |
|---|
| Ball bearing supported crankshaft for greater stability |
|---|
| Roller bearing supported connecting rod |
|---|
| EXCEPTIONALLY QUIET | Belt-driven OHC design reduces mechanical noise |
|---|
| Large capacity, multi-chamber exhaust system |
|---|
| Sophisticated air intake system |
|---|
| PROVEN RELIABILITY | High quality materials, fit, and finish |
|---|
| Lifetime timing belt design |
|---|
| Integrated fuel system protection |
|---|
| Diaphragm carburetor |
|---|
| EASY TO USE AND MAINTAIN | Easily accessible spark plug |
|---|
| Easy to drain and re-fill oil |
|---|
| No mixing of gas and oil |
|---|
| EASY STARTING | Exhaust decompression system |
|---|
| Unique low inertia design |
|---|
| EMISSIONS COMPLIANT | Applicable models meet the strictest world standards, contact Honda for more info |
|---|
| No catalyst necessary |
|---|
| AVAILABLE OPTIONS | Special designs for horizontal and vertical applications available |
|---|
Specifications
| Model | GX35 |
|---|
| Type | 4-stroke, overhead cam, single-cylinder, horizontal shaft |
|---|
| Bore & Stroke (mm) | 39 x 30 mm (1.5 x 1.2 in) |
|---|
| Displacement | 35.8cm3 (2.2 cu in) |
|---|
| Compression Ratio | 8.0:1 |
|---|
| Net Power | 1.0kW (1.3HP) at 7,000 rpm |
|---|
| Maximum Net Torque | 1.6 Nm (1.2 lbs ft) at 5,500 rpm |
|---|
| Ignition System | Transistorised magneto ignition |
|---|
| Starting System | Recoil Starter |
|---|
