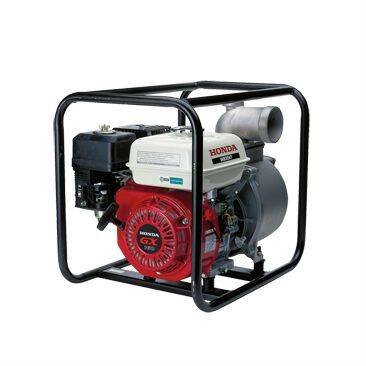

The powerful WB30XT is a 3" portable pump with a 28m head that delivers a maximum capacity of 1100 litres per minute
Pumps Volume WB30
- The Honda GX160 engine ensures easy starting, easy usage, outstanding fuel economy, low emission and long-lasting durability as well as compact designs
- The rubber mount system on full frame type provides stability and delivers smooth running with less vibration
- Honda Water Pumps offer a level of uncompromising performance to a wide variety of water transfer applications
- Designed for easy starting, priming and dependable service, used throughout the world for over 20 years, Honda water pumps have earned a reputation for unsurpassed reliability and performance
- These pumps are known for their durable construction, quality engines and easy portability
- These features apply to all categories of pumps that are offered by Honda
Features
| GX160 OHV engine |
|---|
| Starts first time, every time with Honda’s famous one pull easy start system |
|---|
| 2" volume water pump |
|---|
| Maximum total head 28m |
|---|
| Maximum suction head 8m |
|---|
| Delivers 1100 L/min capacity |
|---|
| Full frame design |
|---|
| With oil alert and rubber mounts |
|---|
| Runs on unleaded fuel so you’ll never have to mix oil and petrol again |
|---|
| Environmentally friendly with low emissions, less noise and low fuel consumption |
|---|
Specifications
| Engine | GX160 |
|---|
| Displacement (CC) | 163cc |
|---|
| Fuel Tank Capacity | 3.6 litres |
|---|
| Fuel Consumption | 1.4 l/hr |
|---|
| Total Head | 28m |
|---|
| Suction Head | 8m |
|---|
| Maximum Pumping Capacity | 1100 litres |
|---|
| Suction Port Diameter | 80mm |
|---|
| Discharge Port Diameter | 80mm |
|---|
| Maximum Pumping Capacity | 1,100 l/hr |
|---|
| Self Priming Time (AT 5m) | 150 sec at 5m |
|---|
| Pump Type | Centrifugal volume pump |
|---|
| Oil Alert | Yes |
|---|
| Dimensions | 510 x 385 x 455 |
|---|
| Dry Weight (KG) | 27 |
|---|
| Mounting Type | Rubber |
|---|
| Hose Band/Stainer | Yes |
|---|
